How to Layout an Open Floor Plan: A Practical Guide for Functional Living
Functional Open-Plan Kitchen Living Space with Muted Blue Cabinetry
Open-plan living is one of the most requested layouts in modern homes. Whether you are planning a kitchen extension, removing internal walls, or redesigning your ground floor, knowing how to layout an open floor plan correctly is essential for both functionality and flow.
A well-designed open-plan space should feel connected — but never chaotic.
Here’s how to approach it strategically.
1. Start With Function, Not Furniture
Before thinking about sofas or dining tables, define how the space needs to work.
Ask yourself:
How many people will use the space daily?
Is it primarily for family living, entertaining, or both?
Do you need quiet zones within the open layout?
Where is natural light coming from?
Open-plan design is not about “removing walls.” It’s about creating purposeful zones within one connected volume.

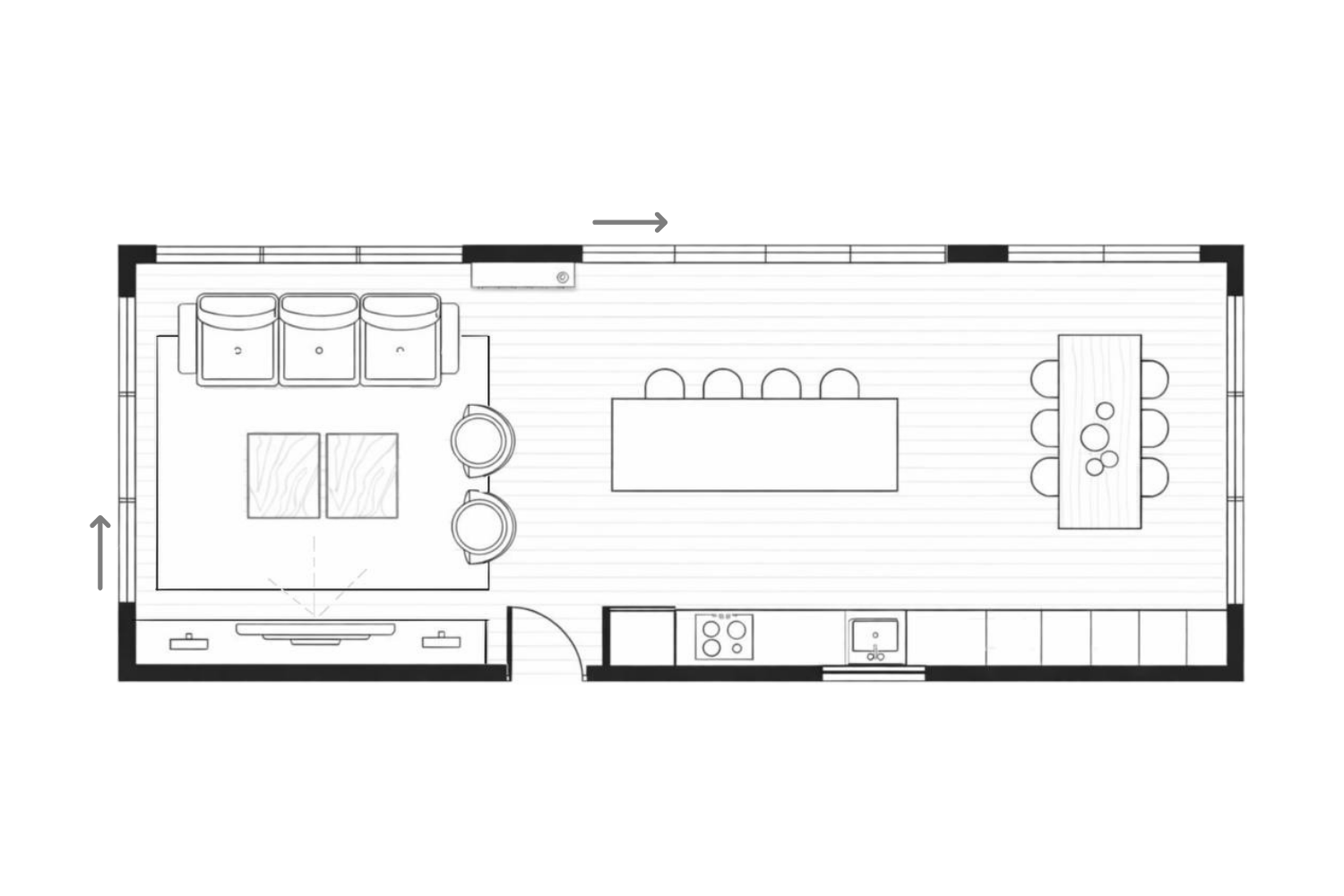

Example of a simple open-plan kitchen, dining and living layout.
2. Define Clear Zones Within the Open Space

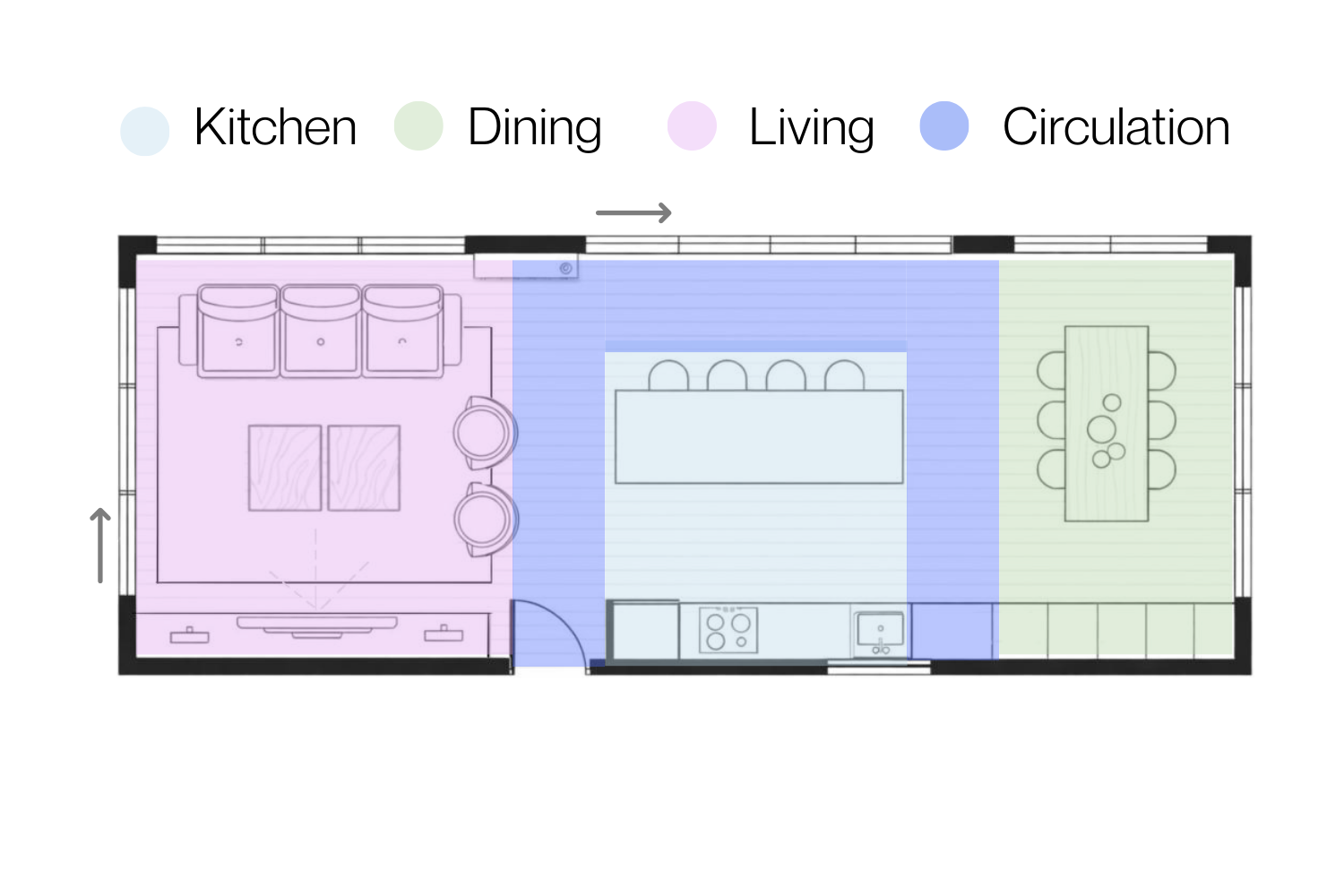

Colour zoning helps define functional areas within an open-plan layout.
Every successful open-plan layout includes clearly defined zones, even without physical walls.
Typical open-plan kitchen–dining–living zones include:
Cooking zone (kitchen)
Dining zone
Relaxation zone (sofa / TV area)
Circulation pathways
Each zone should have enough breathing space around it. Overlapping functions create visual and practical confusion.
3. Prioritise Circulation and Flow
One of the most common layout mistakes is blocking natural movement paths.

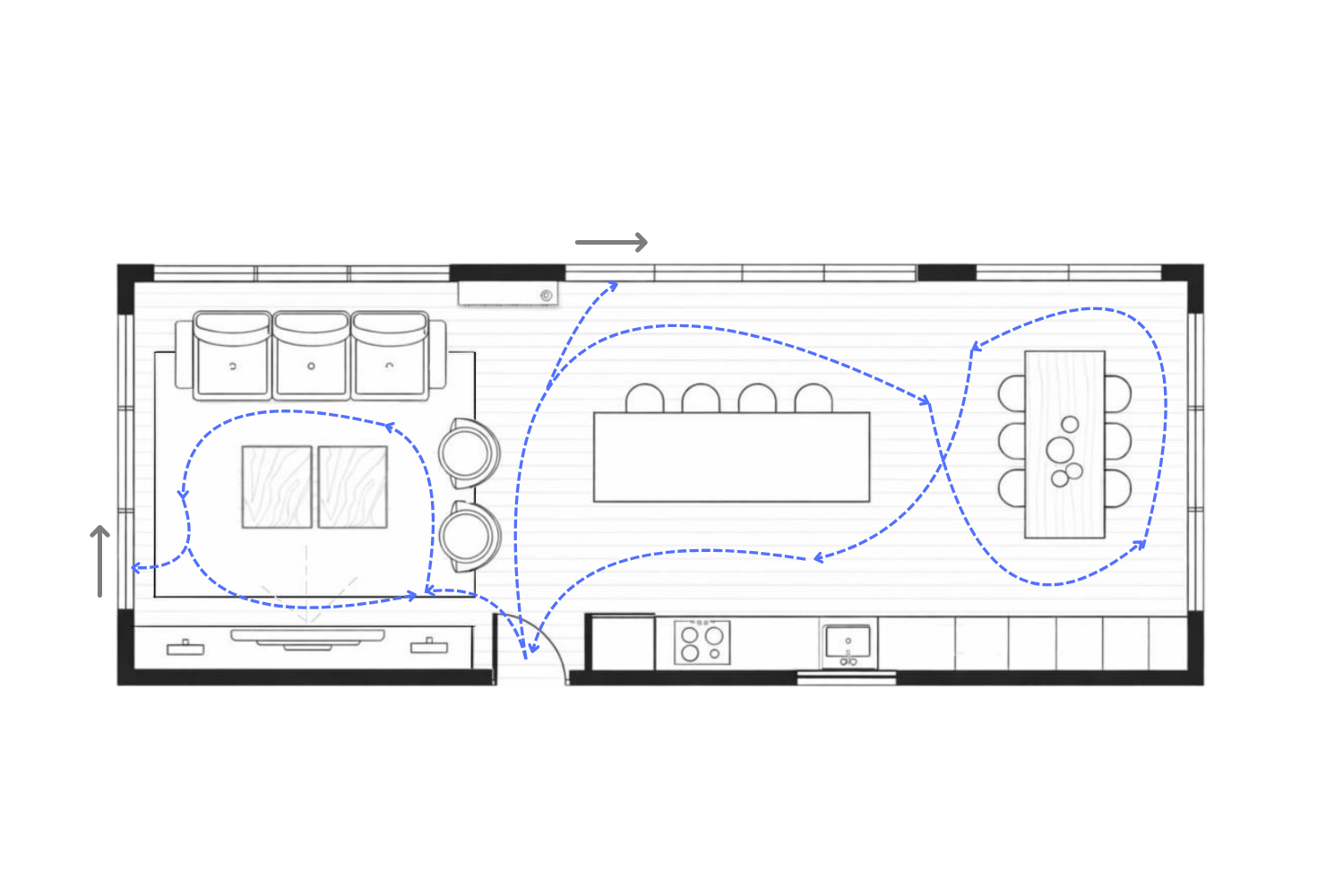

Clear circulation paths help open-plan spaces feel intuitive and comfortable.
In an open floor plan:
Walkways should feel intuitive.
You should not walk through the middle of a sofa area to reach the garden.
Kitchen work zones should not interfere with circulation routes.
Good space planning ensures smooth movement between zones without disrupting their function.
4. Use Furniture to Shape the Layout

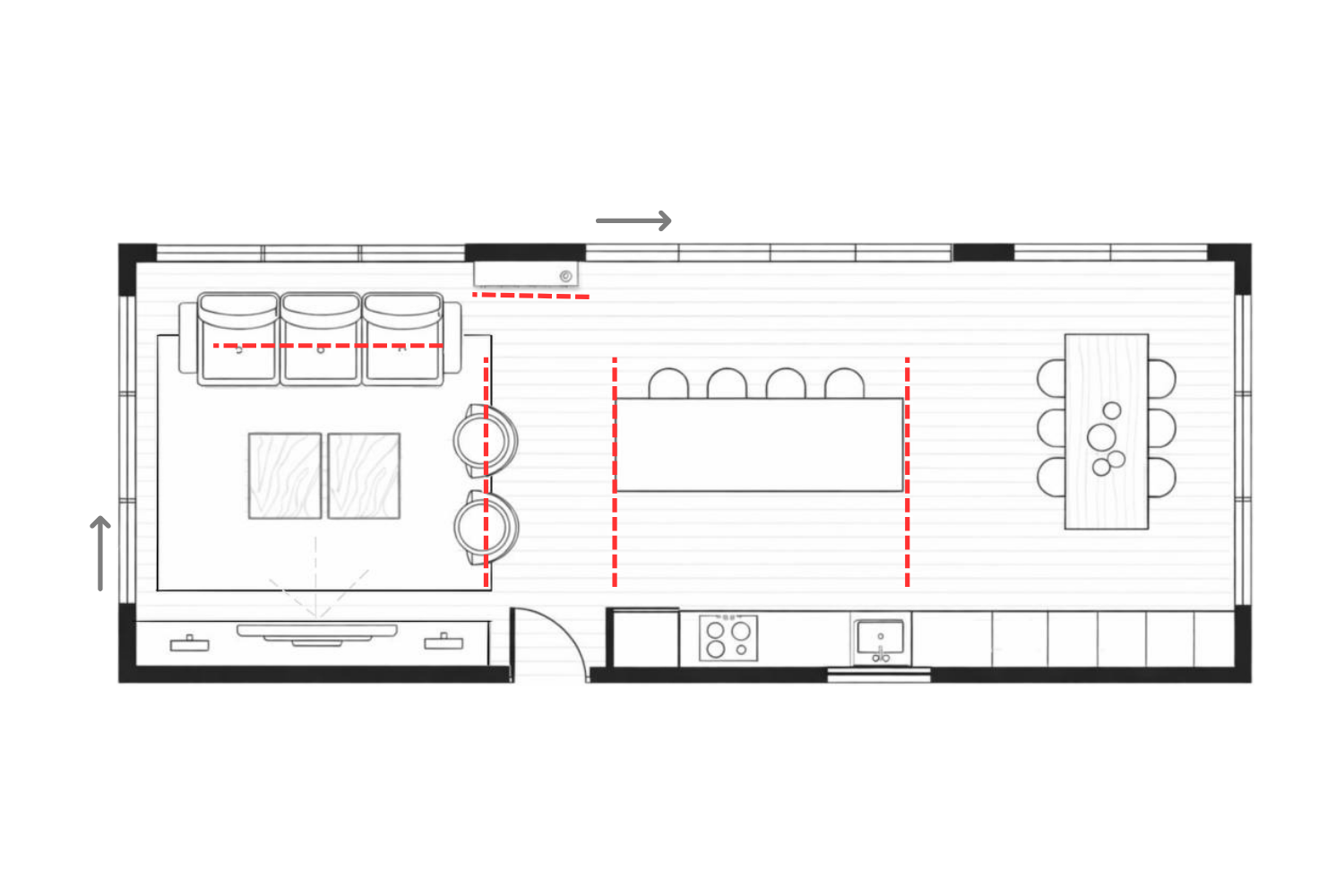

Furniture placement helps organise an open-plan space.
In open-plan design, furniture acts as a subtle architectural boundary.
For example:
A kitchen island separates the cooking and dining areas.
A sofa can define the edge of the living zone.
A console table can create a soft transition between spaces.
You don’t need walls — but you do need structure.
5. Consider Proportion and Balance
Open spaces can easily feel either overcrowded or empty.
To achieve balance:
Scale furniture appropriately to the room size.
Avoid pushing everything against the walls.
Ensure each zone has visual weight.
Proportion is what makes an open-plan space feel intentional rather than accidental.

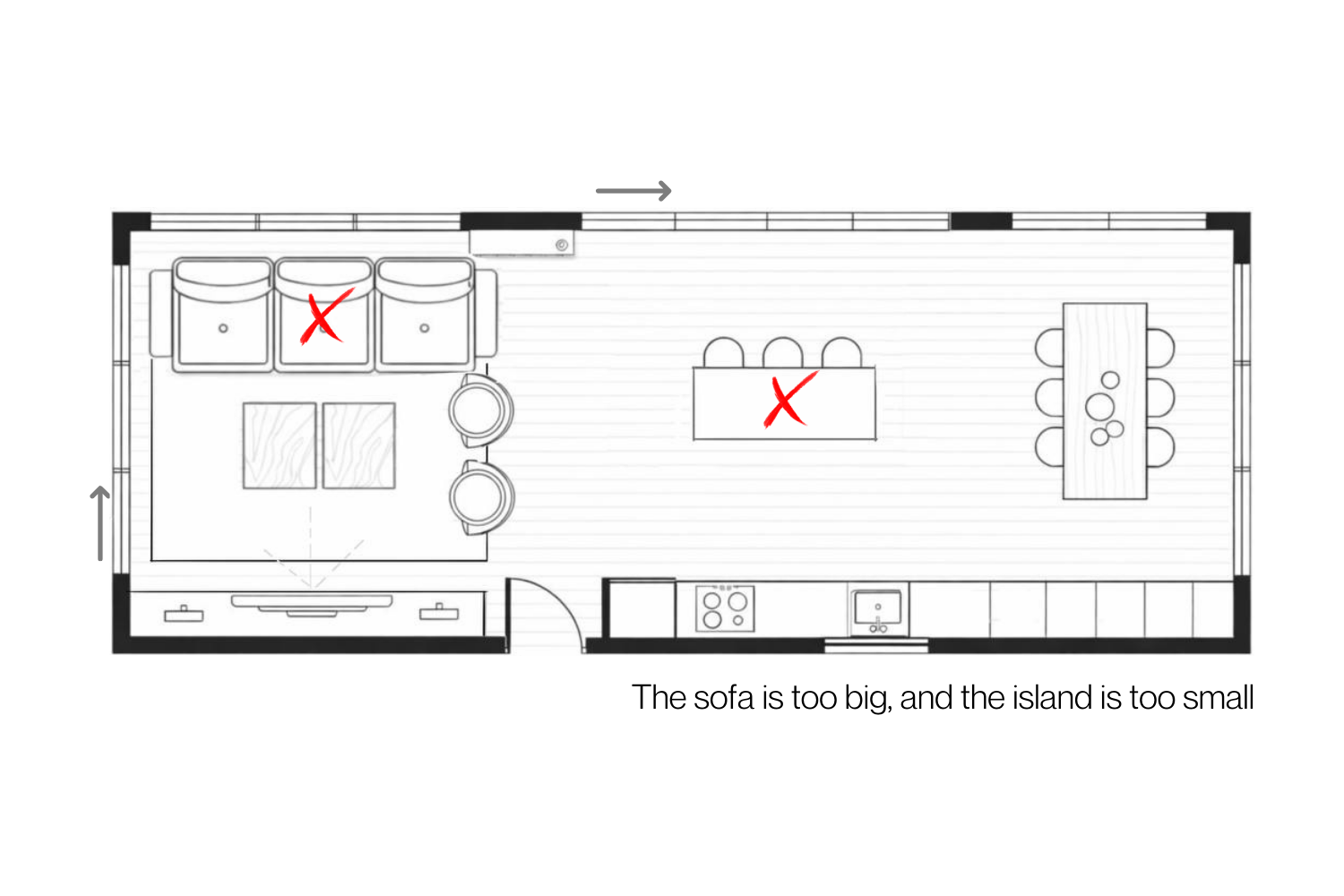

Correct proportions between furniture pieces are essential for balanced open-plan design
6. Plan Storage Early
In open-plan living, clutter is always visible.
Integrated storage, tall cabinetry, and concealed solutions are essential to maintain a calm and cohesive environment.
Particularly in open-plan kitchen–dining layouts, storage planning should be part of the layout stage — not an afterthought.

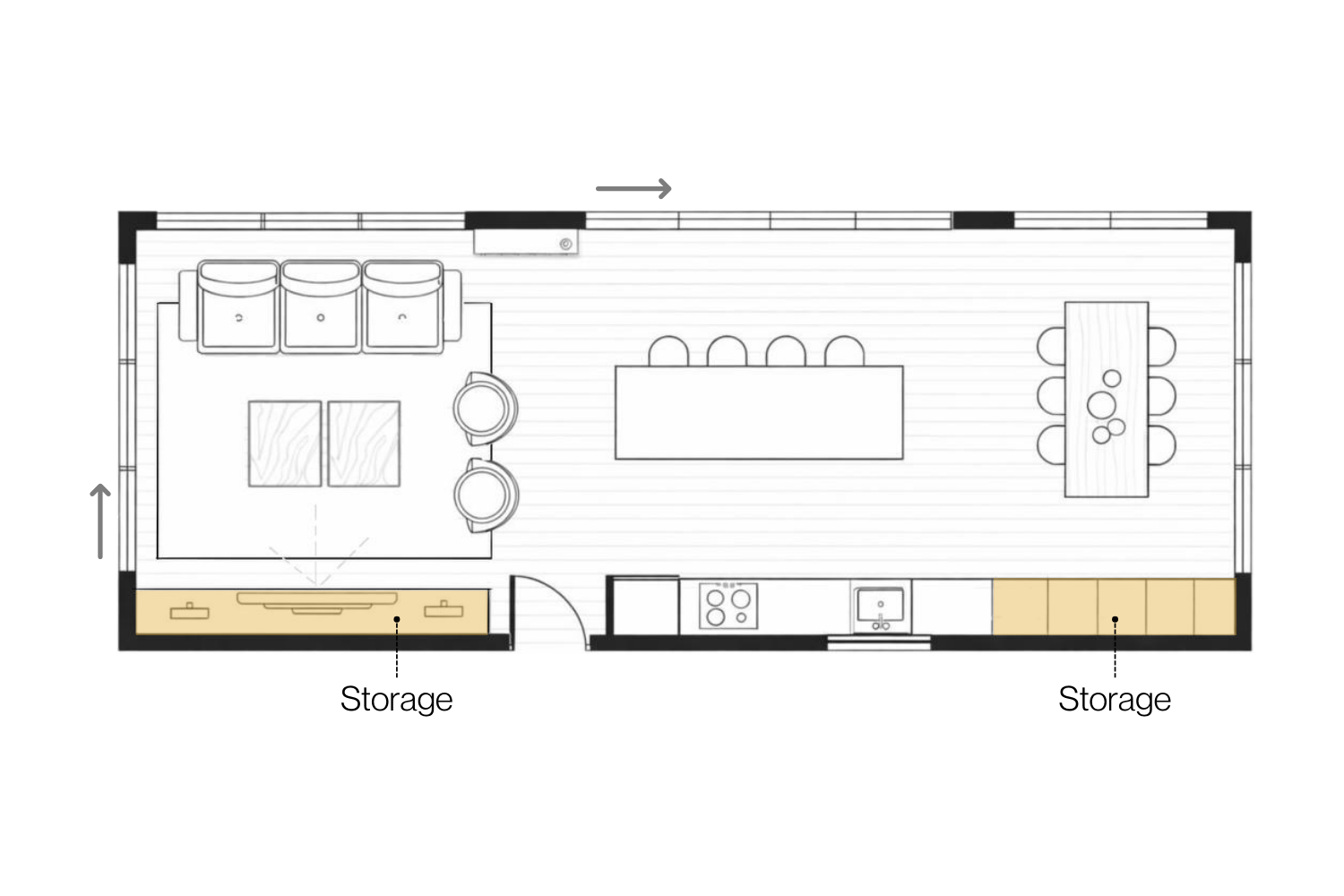

Integrated storage helps keep open-plan spaces organised and clutter-free.
7. Think About Structural Possibilities
If you’re planning a renovation or extension, consider:
Which internal walls are load-bearing?
Can openings be widened?
Would relocating doors improve flow?
Is a structural beam required for full openness?
Open-plan layout design often involves structural considerations, so it’s important to resolve layout options before construction begins.
8. Create Cohesion Through Design Direction
Even though the space is zoned, it should feel visually unified.
Use:
Consistent flooring
Harmonised material palette
Complementary lighting schemes
A successful open-plan layout is cohesive but not repetitive.

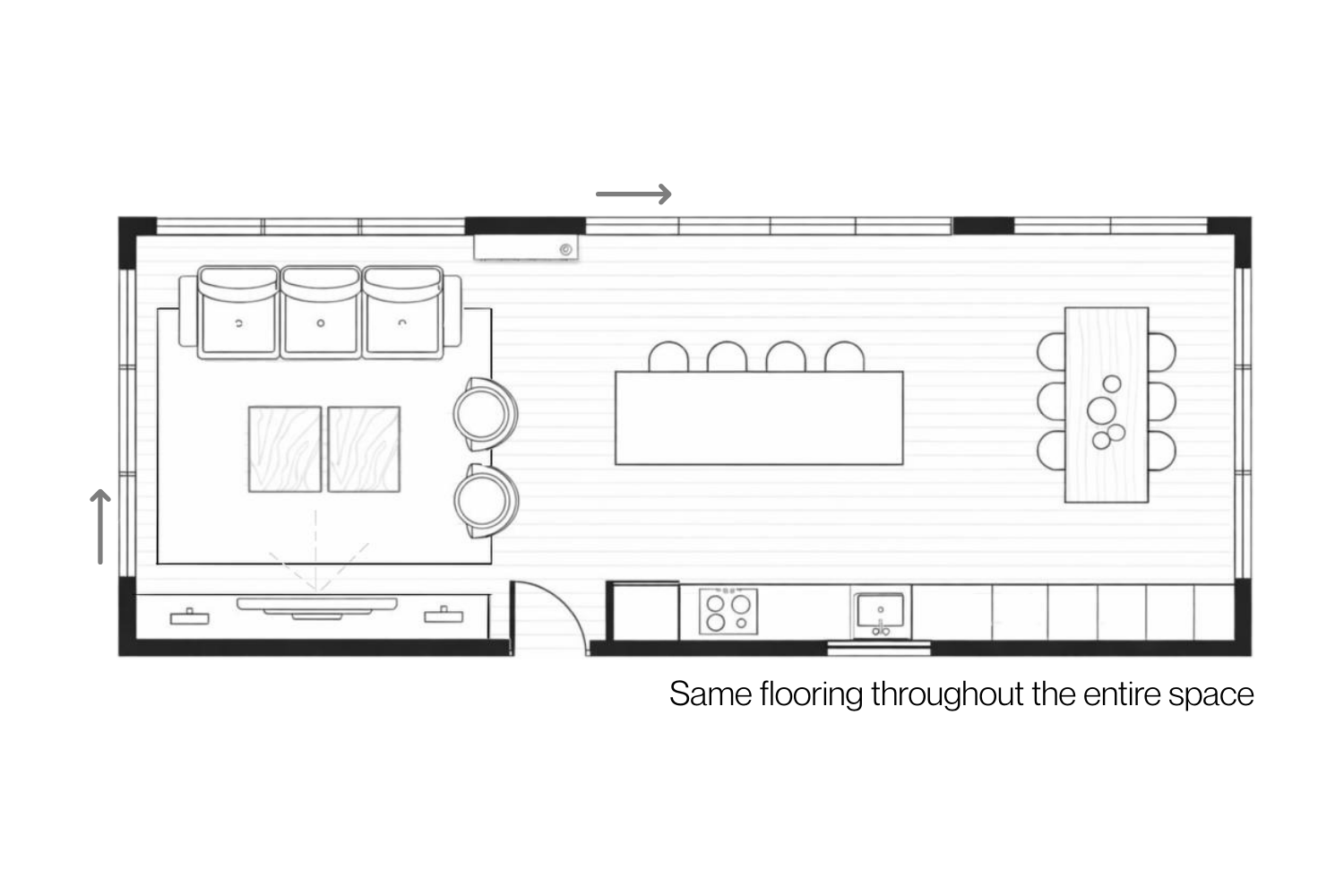

Using the same flooring helps visually unify an open-plan interior.
Final Thoughts: Open-Plan Living Requires Strategy
An open floor plan should feel effortless — but achieving that balance requires thoughtful space planning.
Before committing to building works, it’s always worth exploring layout options professionally to ensure:
Circulation works
Zones are proportioned correctly
Storage is integrated
Structural changes are considered
When done well, an open-plan layout can completely transform how your home feels and functions.
If you’re at an early stage of planning, this guide on house plans in the UK explains how to approach your layout before making structural decisions.
Frequently Asked Questions About Open-Plan Layouts
-
The best open-plan layouts clearly define zones for cooking, dining, and relaxation while maintaining comfortable circulation routes between them. Furniture placement, kitchen islands, and lighting can help organise these zones without the need for walls.
-
Open-plan spaces are usually divided using furniture placement, rugs, lighting, or subtle architectural elements such as kitchen islands or shelving units. These elements create visual boundaries while maintaining an open feel.
-
One of the most common mistakes is ignoring circulation paths. When walkways cut through seating areas or kitchen work zones, the space becomes uncomfortable and inefficient.
-
Using consistent flooring across an open-plan layout helps visually connect the kitchen, dining and living areas, creating a more cohesive and spacious feeling.
-
The size of a kitchen island should be proportional to the room and allow at least 90–110 cm of circulation space around it to maintain comfortable movement.
